The Mellotron V is compatible with the following audio formats:
WAV (Waveform Audio File Format)
AIFF (Audio Interchange File Format)
FLAC (Free Lossless Audio Codec)

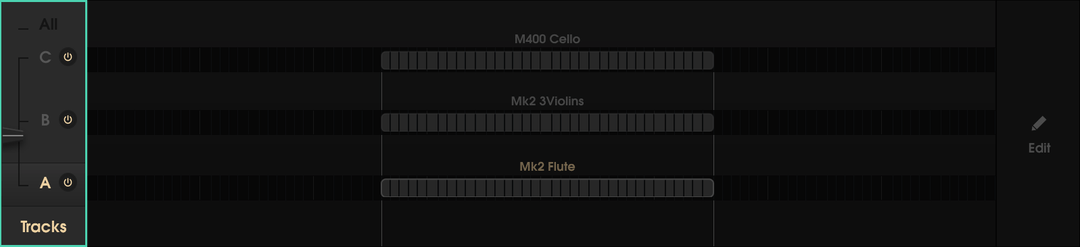

The Track Selector lets you select one of the three Tape Tracks available.
It can be positioned in intermediate positions, allowing for variable mixing between Tape Tracks A/B and B/C.
Additionally, there is an extra position, not available in the original, where all three Tape Tracks play at once.
This is achieved by placing the Track Selector in the All position.
A track row is divided in 96 chromatic semitones, where you can spread up to eight sample into regions, depending on which samples you are using.
The factory tapes regions must be positioned according to the original design, however, the custom samples can be freely shifted across the whole range 96st range.
Per track, you can put up to:
• 2 Factory samples (original tapes)
• 8 User samples
• Or 2 factory samples + 6 user samples combined

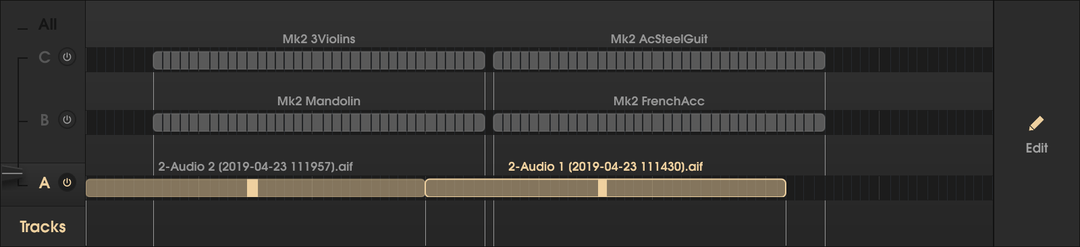

In this page, the 96 semitones row can be seen in the bottom of the page, showing the samples and their regions contained in that track.
To add an additional sample, simply double click on the row.

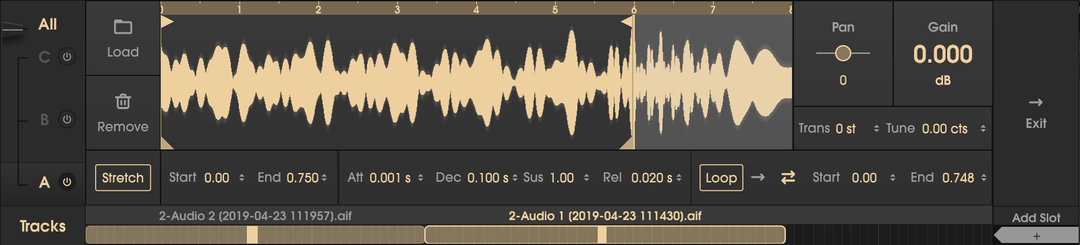

The sample edition part is located on the upper part. This view lets you edit your sample settings, such as the tuning, gain, start/end points, loop mode, stretch, and so on...
It is a regular ADSR envelope, but its values are relative to the destination parameters since it adds or subtracts to tracks envelopes. (offset)
Attack: Offsets all the samples envelope Attack values.
Decay: Offsets all the sample envelope Decay values.
Sustain: Offsets all the sample envelope Sustain values.
Release: Offsets all the sample envelope Release values.

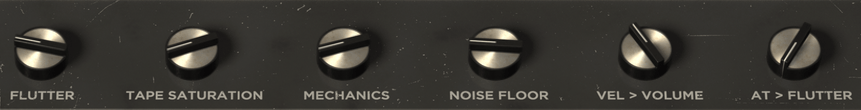

Flutter
Add character by inducing speed fluctuations on the tape playback.
Tape Saturation
Adds magnetic tape saturation.
Mechanics
Simulating the noises that could be created by the machine mechanisms.
Noise Floor
Adds some tape hiss to the playback.
Vel > Volume
Defines how much the volume is controlled by the velocity.
AT > Flutter
Defines how much the flutter is controlled by the aftertouch.(Channel pressure)
