The MiniFuse Recording Pack includes a hardware bundle and a software bundle
.The hardware bundle is constituted of:
A MiniFuse 2
2-in/2-out audio & MIDI interface
A Microphone
CM1 cardioid mic, including shockmount & pop filter
A pair of headphones
EF1 closed-back, low-noise design, including adapter
And an XLR cable
3m length for easy mic setup
The software bundle includes:
- Analog Lab Intro with 500 vintage & modern keyboard presets
- Rev PLATE-140 reverb
- Pre 1973 vintage preamp
- Delay TAPE-201 echo
- Chorus JUN-6 analog chorus
- Ableton Live Lite
And complimentary introductions to audio and mixing services:
Microphone:
- Capsule: Condenser (Cardoid)
- Sensitivity: -36 dB ‡3 dB (0 dB = 1 V/Pa at 1 kHz)
- Frequency response: 20 Hz to 20kHz
- Impedence: 110Ω +/-30% (at 1 kHz)
- Recommended Load impedence: > 1kΩ
- Equivalent Noise Level: < 20dBA (IEC 581-5)
- S/N Ratio: 74 dB
- Maximum SPL: 130 dB
- Power requirement: 48V phantom supply
- Current: 3.2 mA

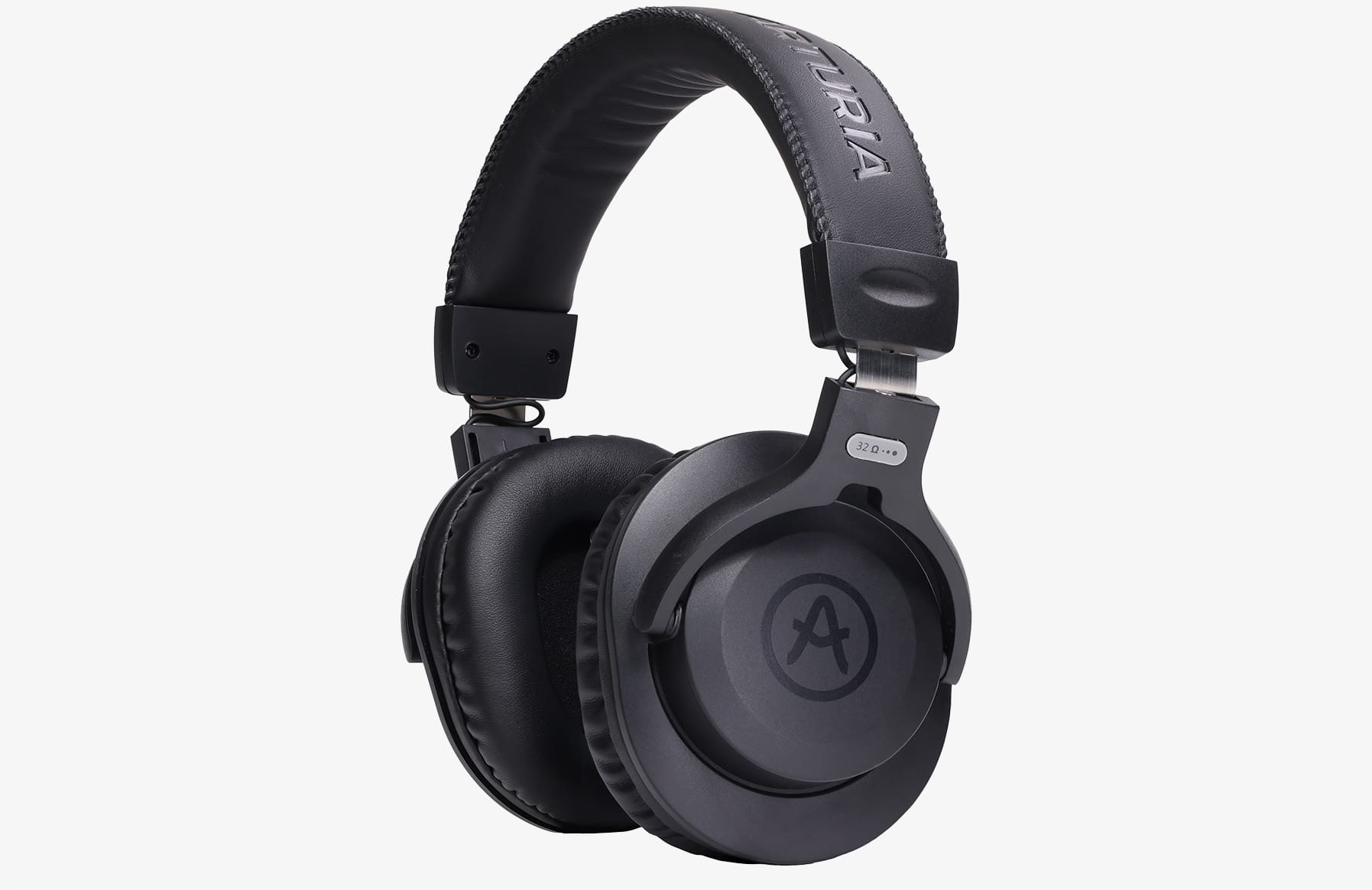

Headphones:
- Type: Closed-back
- Drive diameter: 40 mm
- Impedence: 32Ω
- Sensitivity: 99 dB +/- 3dB
- Frequency response: 10Hz to 20kHz
- Max. power rating: 1.2W
- Cable length: 3m
- Weight: 260g with cable

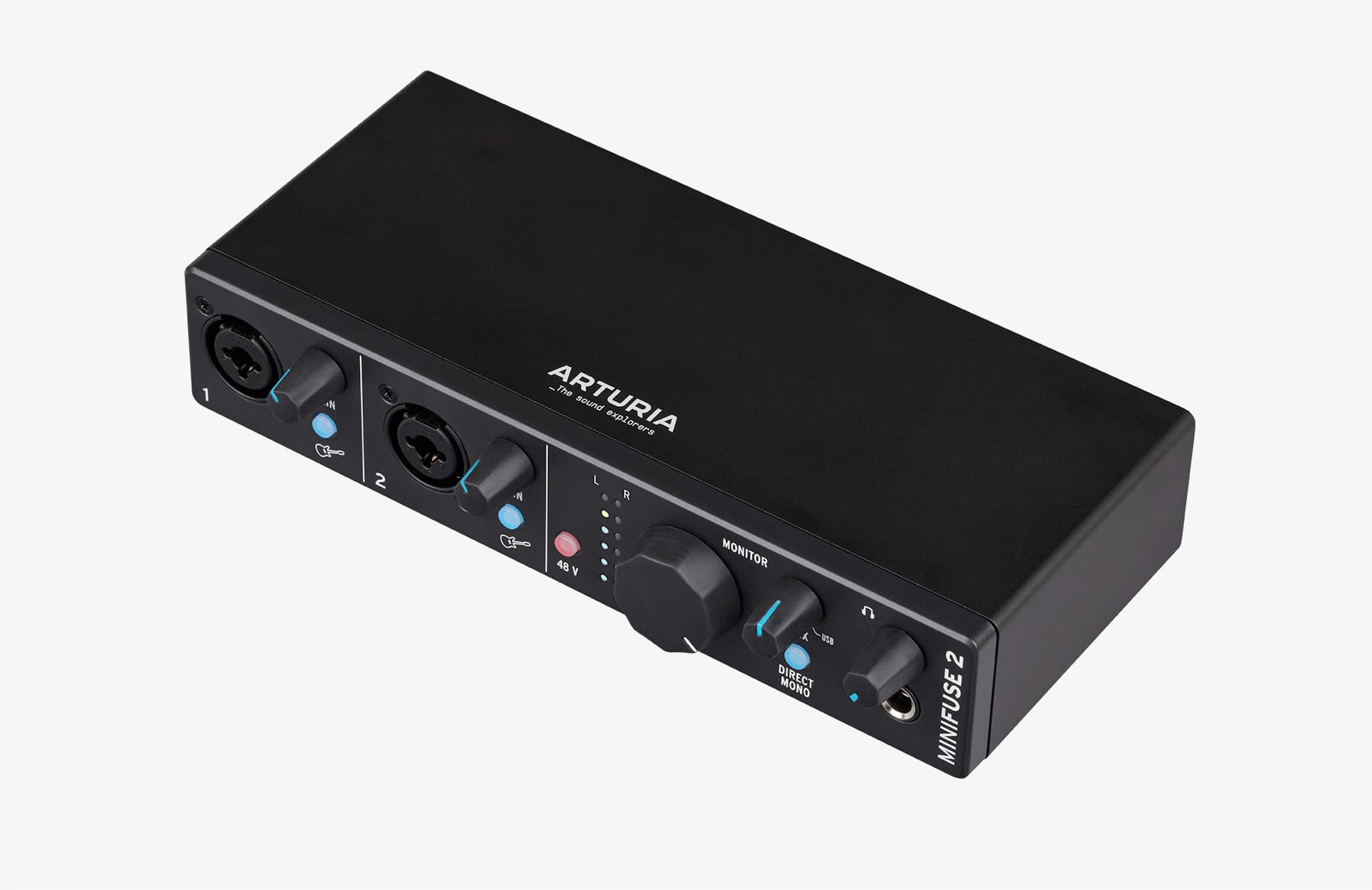

MiniFuse 2:
- 2x Inputs
- 2x Outputs
- 1x Headphone
- 1x MIDI I/O
For more information on the MiniFuse 2, please refer to its dedicated page on our webpage.

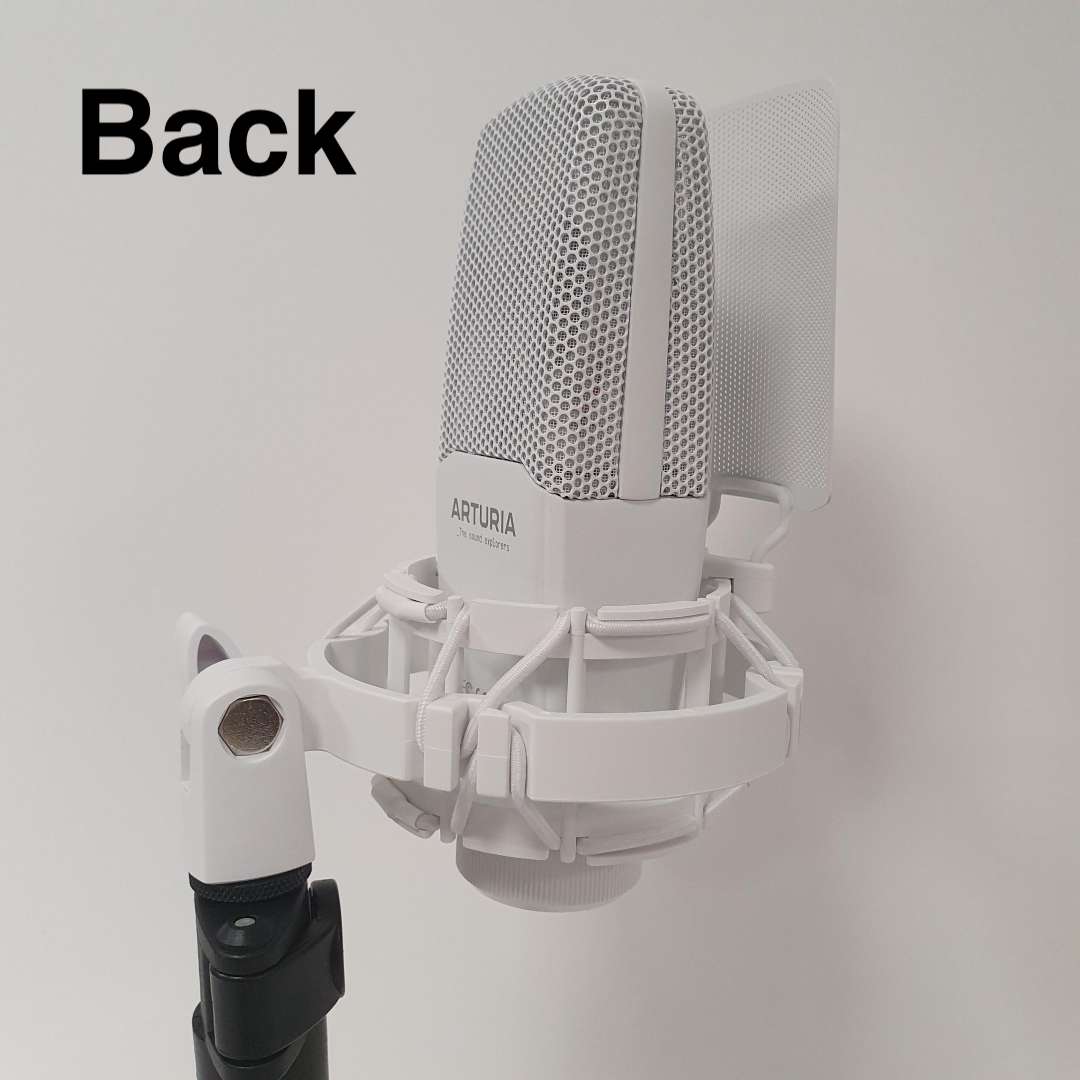

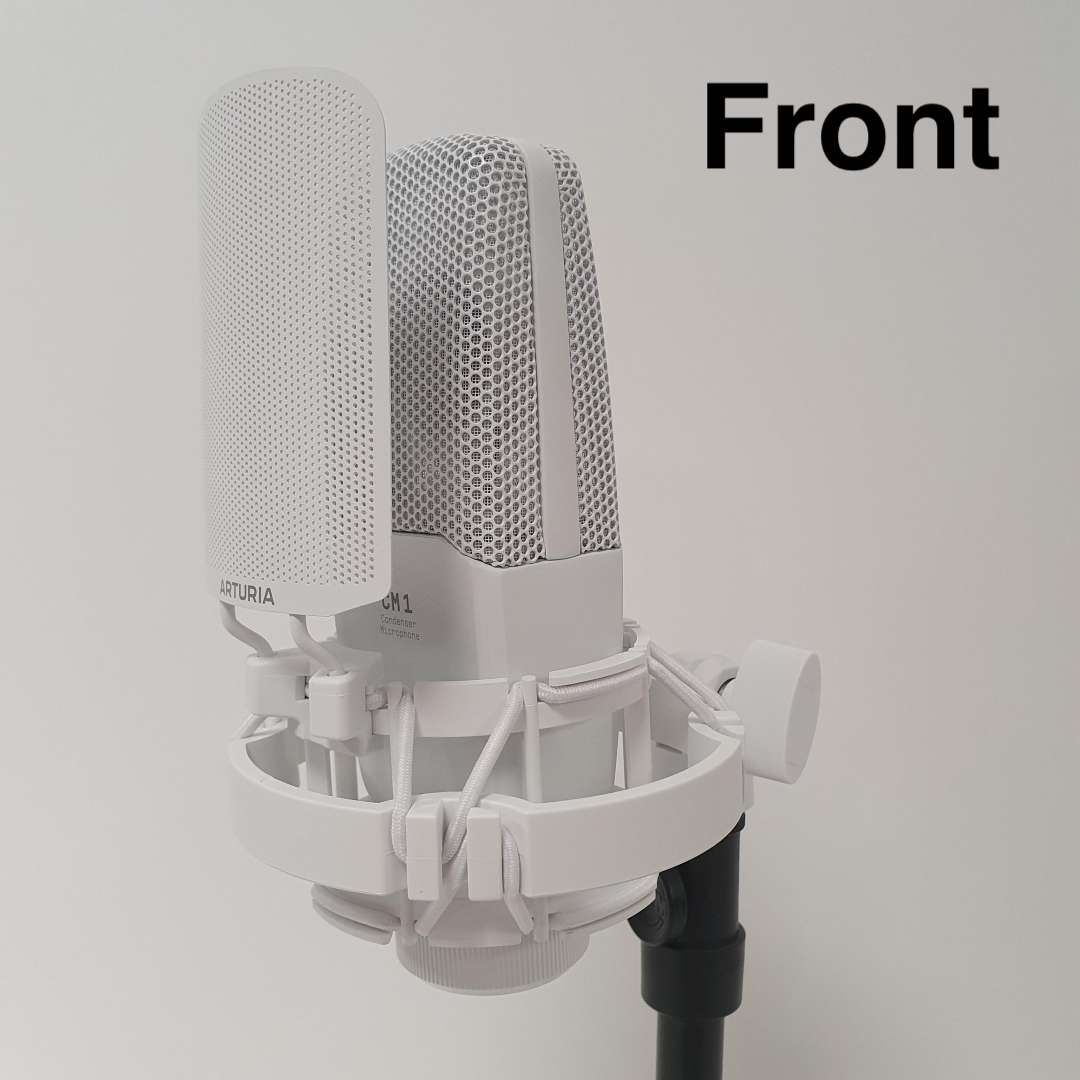

Please pay close attention to the mounting direction of the microphone.
The type and model of microphone should be on the front.
And the Arturia logo should be on the back.
The type and model of microphone should be on the front.
And the Arturia logo should be on the back.
If you have any further questions, feel free to contact us.
