| AC Input Specifications |
|
| Voltage |
100V - 240V AC |
| Power |
45W |
| Frequency |
50-60Hz |
| Pedal Connections Specifications |
|
| Expression |
Tip = Pot center tap Ring = 3.3V ; Sleeve = Gnd |
| Sustain |
Normal Open |

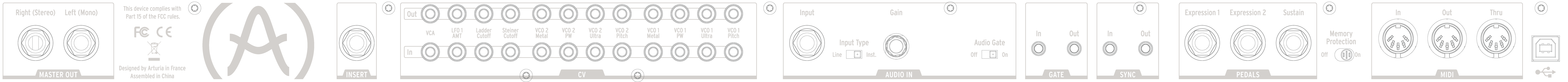

| CV/Gate Specifications |
|||
| VCO1 Pitch |
CV In |
CV Out |
0 - 10 V |
| VCO1 Ultrasaw amount |
CV In |
CV Out |
±5V |
| VCO1 Pulse width |
CV In |
CV Out |
±5V |
| VCO1 Metalizer amount |
CV In |
CV Out |
±5V |
| VCO2 Pitch |
CV In |
CV Out |
0-10 V |
| VCO2 Ultrasaw amount |
CV In |
CV Out |
±5V |
| VCO2 Pulse width |
CV In |
CV Out |
±5V |
| VCO3 Metalizer amount |
CV In |
CV Out |
±5V |
| Steiner Filter - Cutoff frequency |
CV In |
CV Out |
0-10 V |
| Ladder Filter - Cutoff frequency |
CV In |
CV Out |
0-10 V |
| LFO1 Amount |
CV In |
CV Out |
0-10 V |
| VCA Gain |
CV In |
CV Out |
0-10 V |
| Gate |
In |
Out |
0-5 V |
| Sync |
In | Out | 0-5 V |
| Clock Rates |
In | Out | Gate, Clock, 24ppqn, 48ppqn |
| Audio Inputs & Output |
|||
| Label |
Connector |
Level |
Note |
| Master Out L/R |
Mono TS Jack |
+4dBu |
|
| Audio In |
Mono TS Jack |
Line = 0-20dB Inst = 0-40dB |
68kΩ 1.1MΩ |
| Inserts |
TRS Jack Tip=Send Ring=Return Sleeve= Gnd |
CV Out |
±5V |
| Function |
Shortcut |
| Display control value (Offset between preset value & current value) |
Preset + Knob/Slider |
| Auto-tune (5 to 30 seconds) Unit must be warm. (30min @ 20°C) |
Panel + KBD Track |
| Reset Preset |
Panel + PRESET |
| Clear all modulations |
Panel + MOD |
| Reset Sequencer & Arp |
Panel + SEQ |
| Reset encoders value (Macro knobs, Master Cutoff, Modulation Knob) |
Panel + Knob |
| Set Split Point |
Voice Mode + Key |
| Set Lower Part octave | Voice Mode + Octave buttons |
The MatrixBrute allows to record and playback automations from DAWs.
During this kind of use, you can use the Local Control to avoid any MIDI loops.
When set to OFF from the Midi Control Center, it will only listen to the MIDI message coming from the MIDI input & USB.
Need more details, please check this video: Avoid midi loops when working with a DAW
During this kind of use, you can use the Local Control to avoid any MIDI loops.
When set to OFF from the Midi Control Center, it will only listen to the MIDI message coming from the MIDI input & USB.
Need more details, please check this video: Avoid midi loops when working with a DAW
You can now adjust LED brightness by following the steps below:
As you can see in the video, changing the brightness settings affects all the lights like the one next to Flanger.
- Update your MatrixBrute to the latest firmware through the MCC.
- Press the PRESET, SEQ, and MOD buttons all at the same time to access the LED brightness options.
- Choose a value from 1 to a 100 by clicking on the buttons from the L line of the matrix.
- You should see that the buttons light up more or less brightly depending on the value selected, with 1 being really dim, and a 100 being really bright.
- Once you are satisfied with the level of brightness, simply click on one of the three buttons mentioned above to exit the brightness editing mode.
As you can see in the video, changing the brightness settings affects all the lights like the one next to Flanger.
