AstroLab - Presets, Banks, and Playlists transfers

To transfer presets and banks to your AstroLab, you can either drag-and-drop, or use the dedicated "Add to AstroLab" function.

→ Drag-and-drop from Analog Lab to the AstroLab Library:

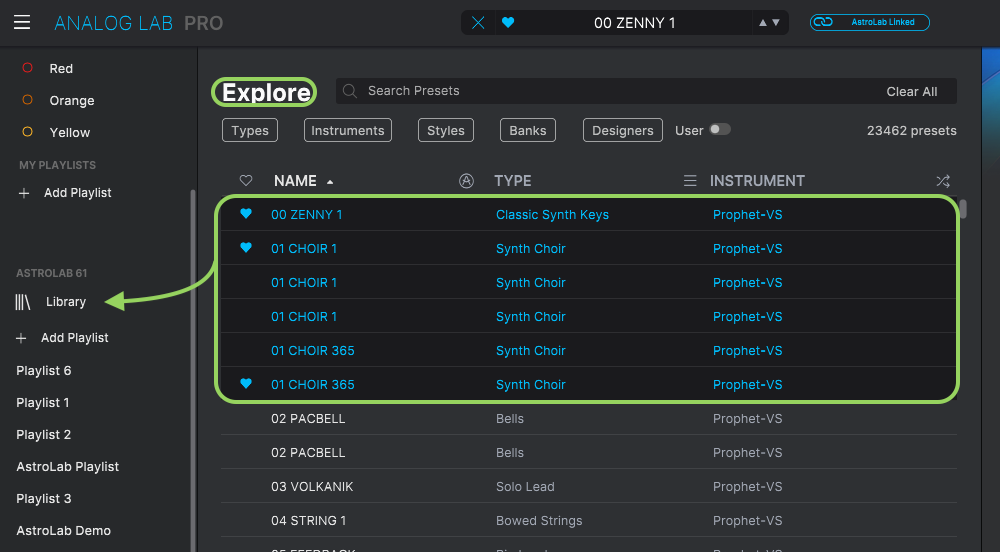

In the Explore view, or Sound Banks view, make a selection of presets, and drag & drop them into the AstroLab Library:



→ Use the "Add to AstroLab" function:

There are two ways to do it.

You can either do so by:

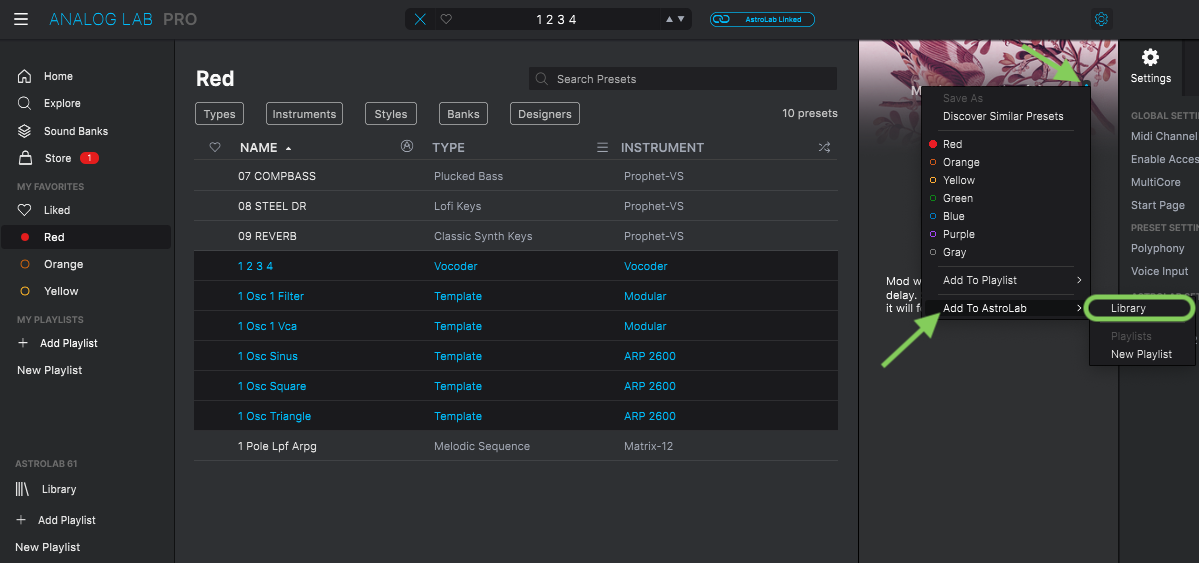

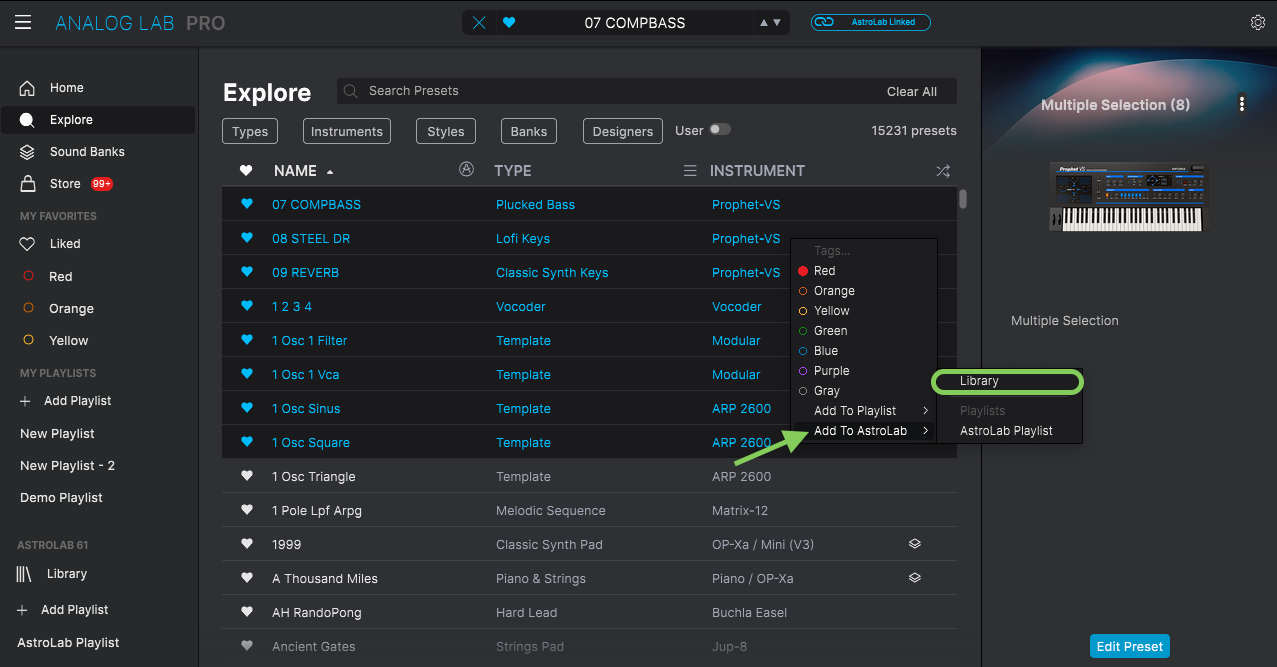

Opening the "Explore view" or "Sound Banks" view, make a selection of presets, right click to open the menu, and select "Add to AstroLab Library":



Opening the "Explore view" or "Sound Banks" view, make a selection of presets, click on the three dots on the top right in the "Preset info" section to open the menu, and select "Add to AstroLab Library":

When importing playlists from the USB Host port, make sure to first transfer all the presets included within your playlists to your unit by applying the same steps as described above, and then transfer your playlists by using the "Add to AstroLab Playlist name" located in the same menu.

You can also directly drag-and-drop the selected presets to the desired playlist displayed in the lower left corner of the Analog Lab GUI.
